Plastic PP/HDPE Solid Waste Washing Line

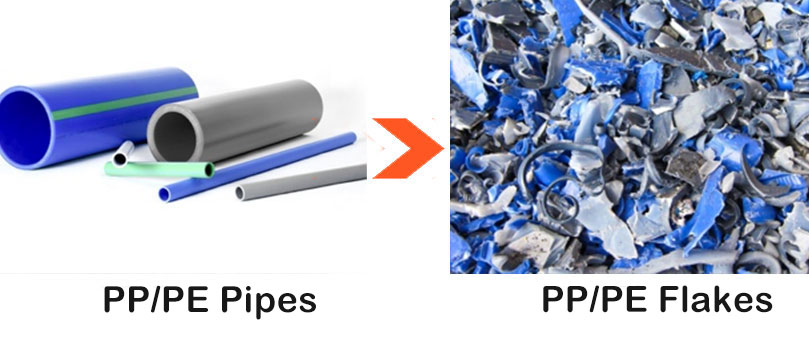

Our specialized HDPE PP recycling line is designed for reprocessing and cleaning HDPE bottles, pails, barrels, and PP pipes. The process includes bale opening, crushing, continuous washing, and drying using friction washing and a dewatering dryer.

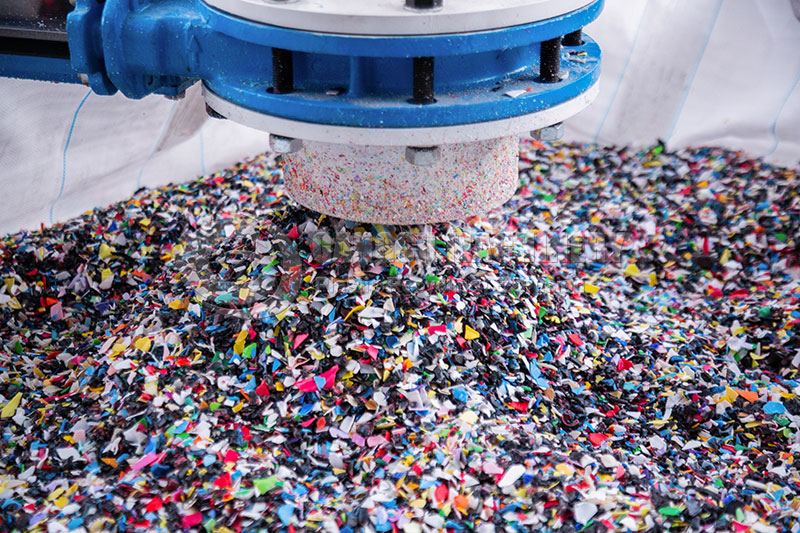

The final flakes, with less than 1% humidity, can be directly used in our plastic granulator to make pellets. Our automated HDPE PP rigid recycling equipment, ranging from 1000kg/h to 3000kg/h capacity, minimizes labor costs.
Materials available for processing
Parameter overview
| Output Capacity (kg/h) | Installation Power (kw) | Floor Space(㎡） | Operators | Steam(kg/h) | Water Consumption(m³/h) |
|---|---|---|---|---|---|
|
500 |
220 |
400 |
8 |
350 |
1 |
|
1000 |
500 |
750 |
10 |
500 |
3 |
|
2000 |
700 |
1000 |
12 |
800 |
5 |
|
3000 |
900 |
1500 |
12 |
1000 |
6 |
|
4500 |
1000 |
2200 |
16 |
1300 |
8 |
|
6000 |
1200 |
2500 |
16 |
1800 |
10 |
Brief description of cleaning process
Cleaning line detail photo set
Belt conveyor
Used to convey PP/HDPE solid waste materials to the crusher in the back-end equipment
Plastic crusher
Used for crushing PP/HDPE solid waste into 10-20mm flakes
Screw feeder
This equipment is used to transport the rinsed material to the rear equipment

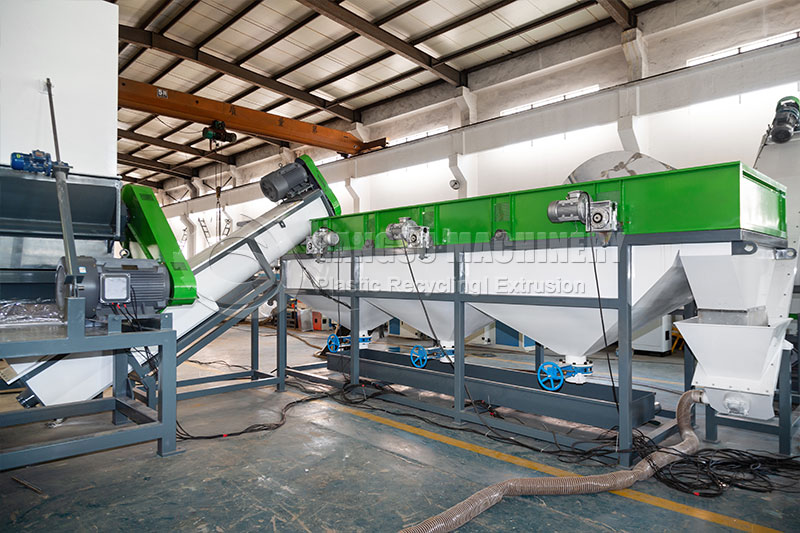

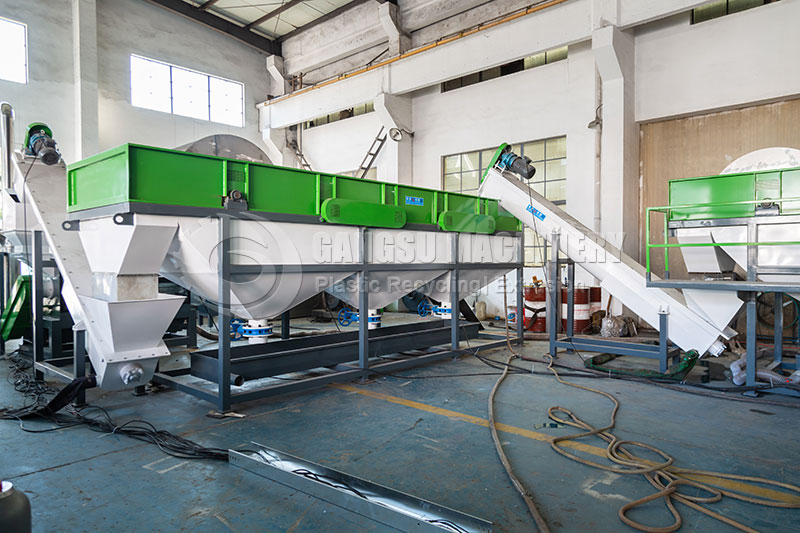

Floating tank
It is used to rinse the material for the first time to separate the sediment impurities in the material
Friction washer
Used to rinse the rinsed material with high pressure water, high speed scrubbing and conveying to the rear equipment
De-water machine
he centrifugal force generated by high-speed rotation removes most of the water from the material
Zig-zag dryer system
Heating of the air in the pipeline to further reduce the moisture content of the material
Silo
For storage of clean and dry plastic film flaks
Control cabinet
For controlling the washing line and observing the operation of each piece of machine

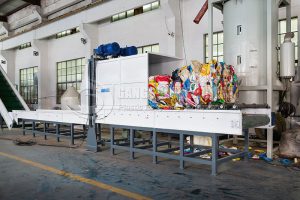

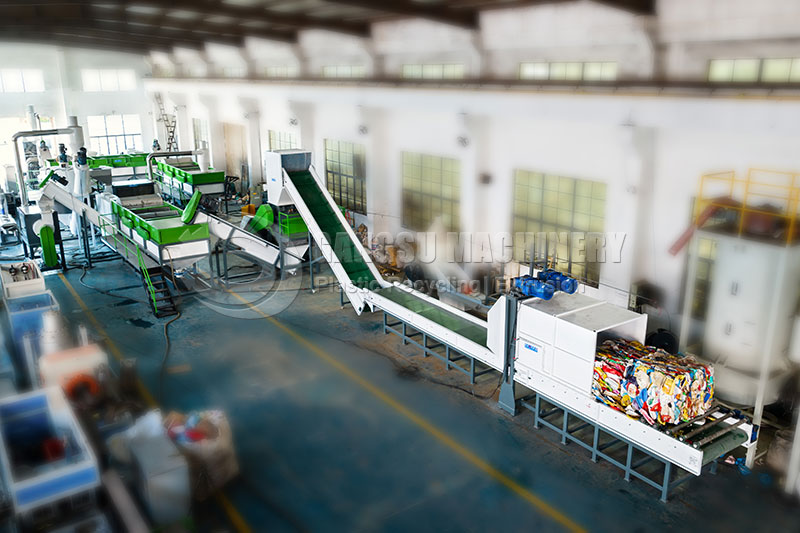

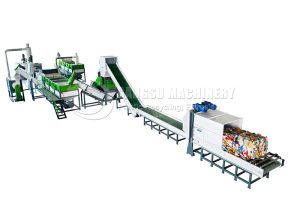

Turnkey Project Delivery Case
- Material: HDPE Waste Bottle
- Output Capacity: 700KG/H
- Floor Space: 450m²
- Installation Power：400-800KW
- Water Consumption: 15 m²/H
GANGSU provides operation manual (English version) to instruct how to maintain and install and operate the machine, if any technical problem, the buyer can communicate with the seller by phone call and email.
During warranty period, the seller will change spare parts (except for wearing parts like: blades, heating parts and small electrics etc.) for the buyer when parts worn-out free of charge. GANGSU will deliver the needed parts to you.
